Meet the PESCO

AHC-70

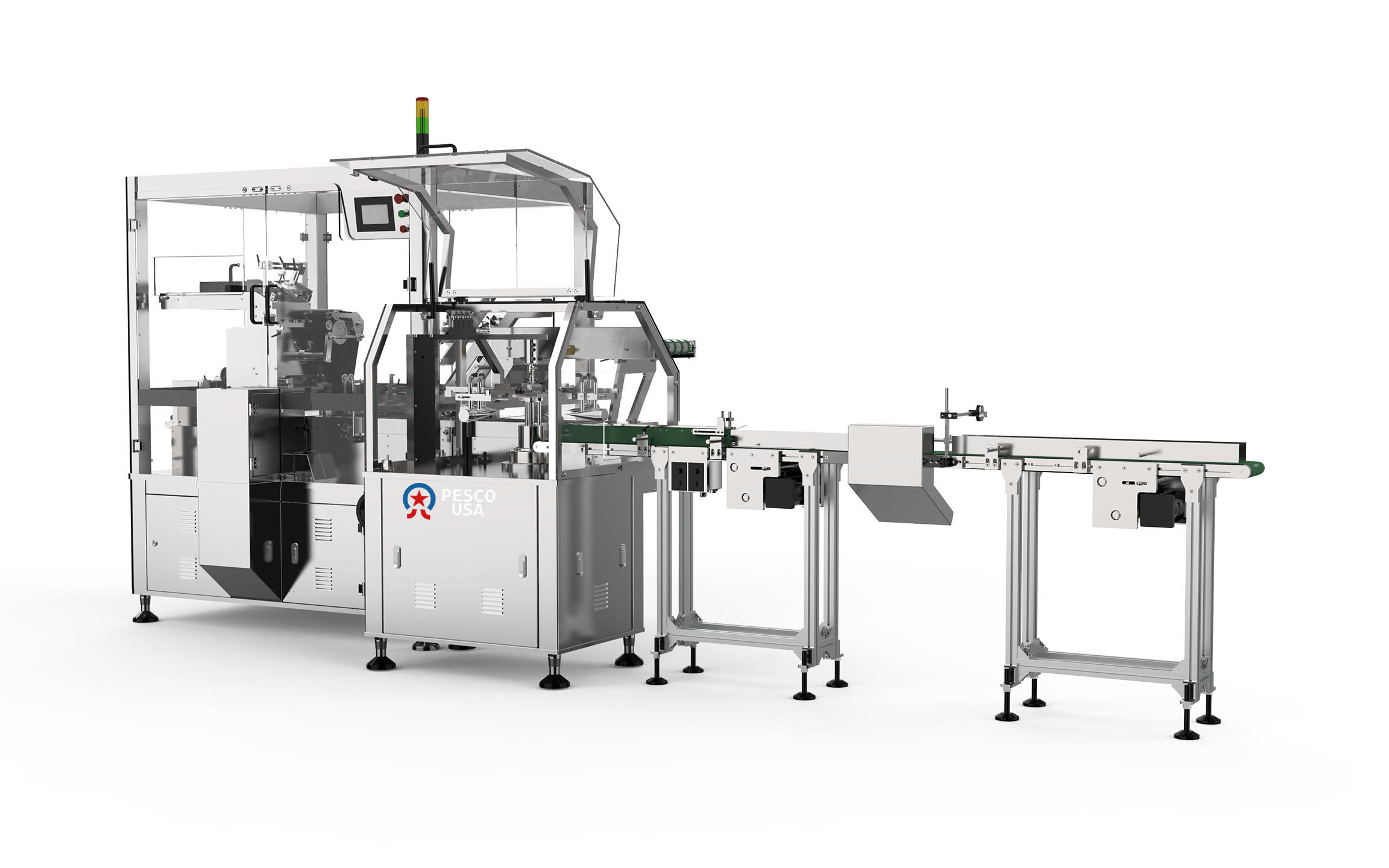

PESCO ACH-70 Horizontal Cartoner

A fully automatic horizontal carton packaging solution.

Capable of operation speeds up to 70 parts per minute, this cartoning system will impress you with the speed and efficiency of operation and setup. Frequent size changes? Easily change formats and get back in action with the AHC-70.

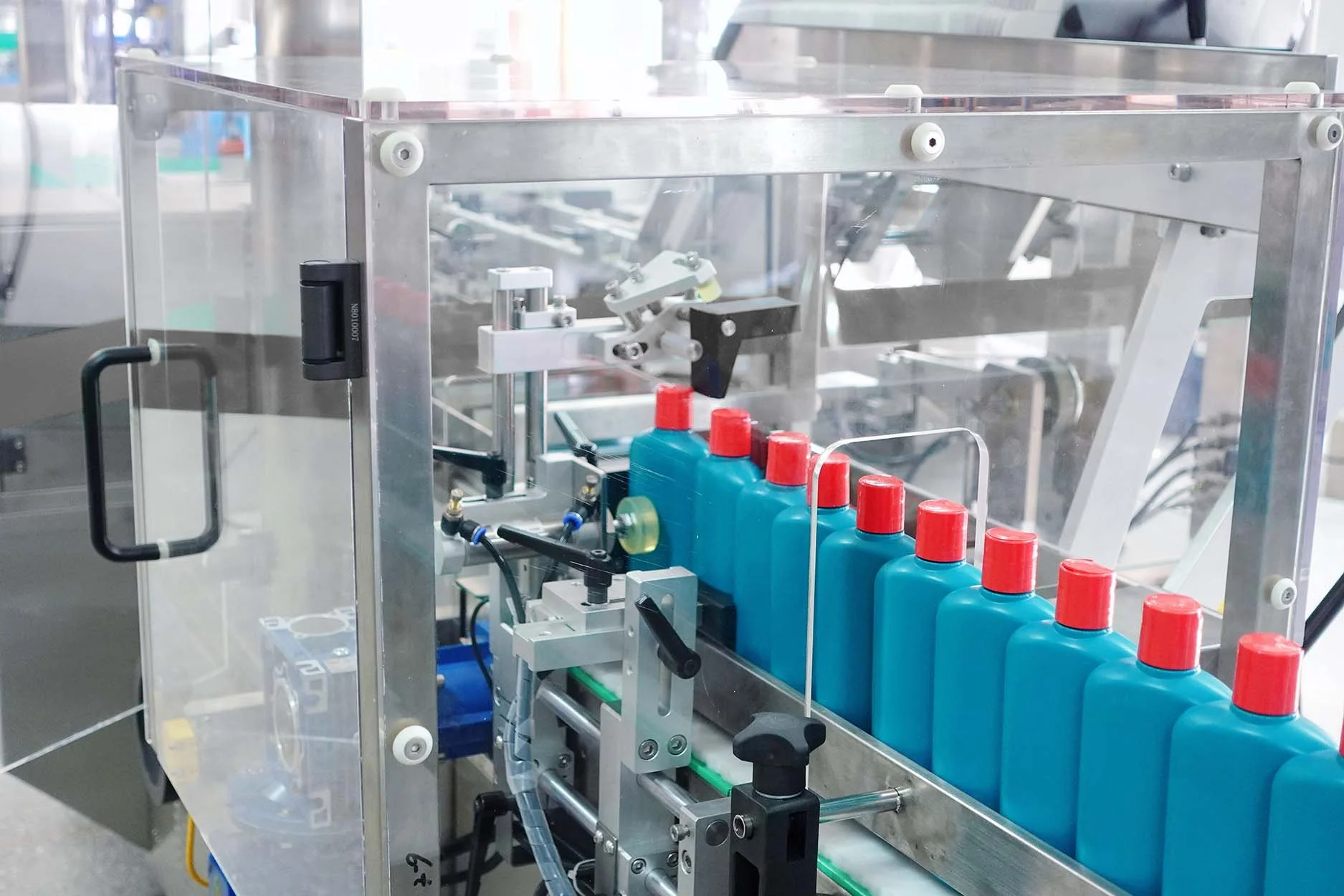

PESCO AHC-70 Cartoner Product Infeed
PESCO AHC-70 Cartoner Loading Station

Automate your line with a AHC-70

The PESCO AHC-70 is a fully automatic cartoning machine- automating the entire process from feeding, loading, folding, leaflet insertion, coding, defect rejection, and finishing. Capable of handling products from 65mm x 30mm x 25mm all the way to 240mm x 95mm x 80mm (L x W x H). The perfect match to the TFS-80X or your existing bottle or jar line.

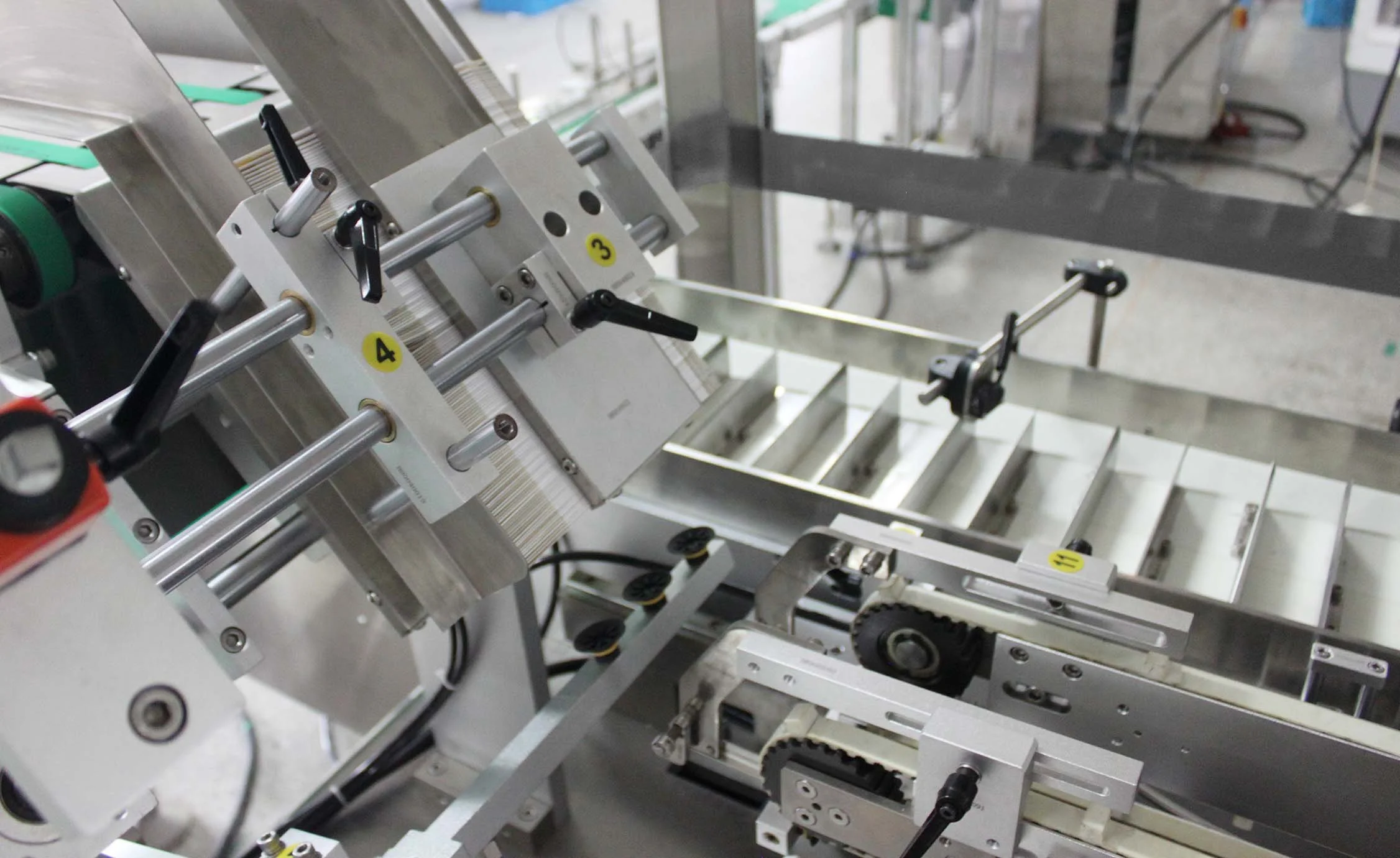

PESCO AHC-70 Cartoner Carton Infeed

Machine Details

  • Weight: ~2,500 lbs
    Dimensions*: 9’ x 5’ x 7’ 2”

    *Final dimensions and weight will vary based on configuration.

  • Power: 220V, 3Φ, 60Hz, 20A
    Nominal Power Draw: 2 kW

    Air Pressure: 90-120 psi
    Air Volume: 15 cfm

    *Vac pump option reduces air volume requirement

  • 4200 parts per hour

    Leaflets 200mm x 50mm - 100mm x 20mm
