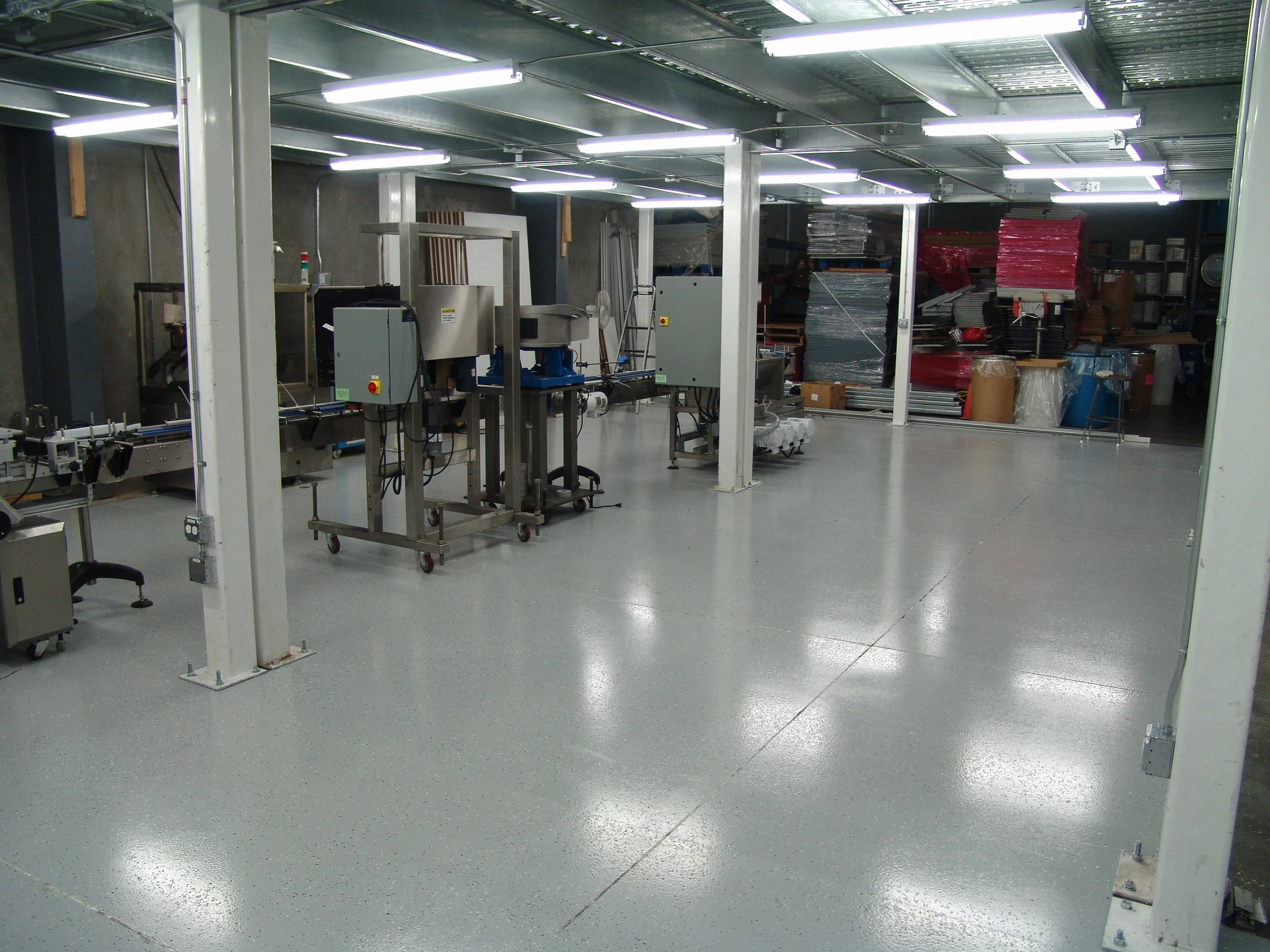

4 Head Liquid Bottling Line
Positive Displacement Pump Filler
Positive Displacement Pump Filler Module
• Sturdy stainless steel tubular frame on adjustable leveling legs and casters
• Easy height adjustment up to 12" tall containers
• Stainless steel filler reservoir
• Filler product re-supply system with electronic float system and check valve
PLC Control System with digital LCD touch screen display
• Digital filling volume setting for each pump from touch screen.
• Revolution sensor-based pump RPM pulse counting system.
• Automatic bottle indexing system (moves bottles automatically)
• No bottle/no fill vision system (insures no attempted fill of missing bottles)
• Anti-bottle backup vision system (prevents filling if bottles are jammed downstream)
• Overall electronic production counter
• Pneumatic gates to stop containers or Star wheel bottle indexing.
• Conveyors start/stop control system.
• Memory locations for fill and indexing set-up recipes
4 Pump & Drive System
• Variable Speed Motor, Gear Reducer, Clutch/Brake, and stainless-steel positive displacement pump.
4 Stainless steel nozzle assemblies with Positive Shut-Off
1 Automatic Neck Locating System
• Stainless steel and anodized aluminum construction.
• Crank height adjustment for variable container sizes.
• Grabber bar with tool-less adjustment bottle guides.
1 Diving Head Mechanism
• Stainless steel and aluminum frame
• Air-actuated operation
Capping System
Inline 6 Spindle Cap Tightener
• Fully adjustable for caps from 8 mm to 110 mm
• Fully adjustable from 1 inch to 14-inch-high containers
• Heavy duty 304 Stainless steel Tig-welded C frame
• 6 capping discs, with bottom screws change over.
• Direct gear motor transmission through coupling for capping belts movement
• DC gear motor for independent speed control of gripper belts
• Capping discs adjustment by frontal knobs, with lock nut hand wheel
• Hand Crank for manual height adjustment
• Gripper belt in/out adjustment by hand wheel
• Priced with single, opposing, 3/4" Gripper Belts (other models available)
• No change parts needed for a wide range of containers.
• Electric and pneumatic requirements: ·110 Volts, 60Hz, 15 Amps. ·5 CFM @ 80 p.s.i.
• Cap Delivery Chute, tool-less adjustment on 4 axes for versatility, can be fed manually or by automatic sorting system.
27" Vibratory Cap Sorting Bowl
• 27" Bowl diameter with 304 stainless steel construction, tooled for various caps.
• Alternating Vibration Coil and Control Cube, for adjusting sorter speed.
• Heavy-duty Bowl Cart, with powder-coated steel frame, leveling legs and casters.
Pressure Sensitive Labeler with Wrap Station Feature
Labeler

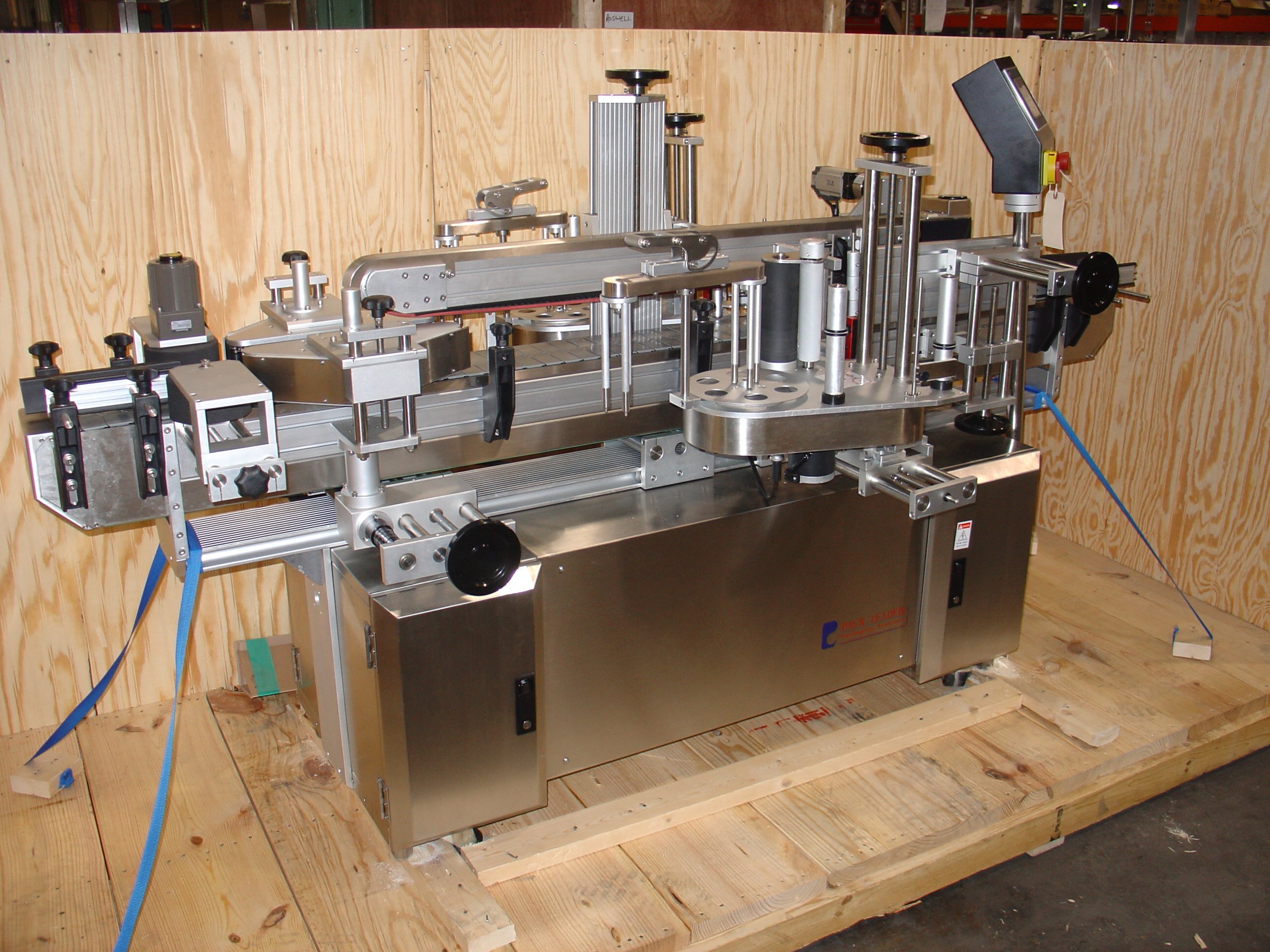

TWO-SIDED PRESSURE SENSITIVE LABELER
• The LAW-6250-PL automatic front & back labeling system comes equipped with a 6 5/16"iinch wide (adjustable) X 8’ long variable speed conveyor.
• Features include a stepper motor drive for label and power assisted web take up
• Labeling heads speed automatically synchronizes with conveyor speed.
• Non-contact photo eye sensors and an auto teach function for new labels.
• Handles many different size containers and can be used in virtually all industries such as pharmaceuticals, personal care products, foods, vitamins, cosmetics, and chemicals.
• One touch automatic label detection and setup
• Built-in touch screen operation manual
• Built-in touch screen troubleshooting guide
• Low or Missing label detection with automatic stop system to prevent mislabeling.
• Label counter and Count down feature to allow precise run of set number of labels.
• Auto Shut Off
• Specifications: Voltage: 220/110 VAC 50/60 HZ 1 phase Power: 1,320 WA
• Conveyor speed: 0-40m/min. Dispensing speed: 40 m/min max.
• Applicator height: 150mm(5 7/8")/200mm(7 7/8") Conveyor width: 160mm (6 5/16")
• Spool diameter: 76mm(3")
• Measurement: 2,420mm (L)*1,800mm(W)*1,450mm(H)
• Full or Partial Wrap Labeling Feature
Turntables & Conveyor
1 APS 40" ACCUMULATING TURNTABLE
• 304 stainless steel Disc top
• 304 stainless steel frame construction
• Line height 30-36"
• Clockwise or Counterclockwise rotation
• 115/230Volt/1f/50-60Hz Variable speed control box mounted on machine cabinet
• Single rail system with HDPE bottle contact surface and tool-less adjustments
1 APS 40" LOADING TURNTABLE
• 304 stainless steel disc top
• 304 stainless steel frame construction
• Overhead support system for bottle diverter
• Line height 30-36"
• Clockwise or Counterclockwise rotation
• 115/230Volt/1f/50-60Hz Variable speed control box mounted on machine cabinet
• Single rail system with HDPE bottle contact surface and tool-less adjustments
Conveyors
2 15' x 6.0" Sanitary Conveyor
• 304 Stainless steel closed-shell construction
• 6.0" Delrin chain belt, elevated on spacer for easier washing above & below the belt.
• Optional open link chain for faster removal.
• 115V/1f/50-60Hz Variable Frequency Drive.
• Washdown duty 90Volt DC motor.
• 36:1 gear reducer.
• Speeds up to 67' per minute.
• Single stainless steel rail system with HDPE wear strip & tool-less brackets.
