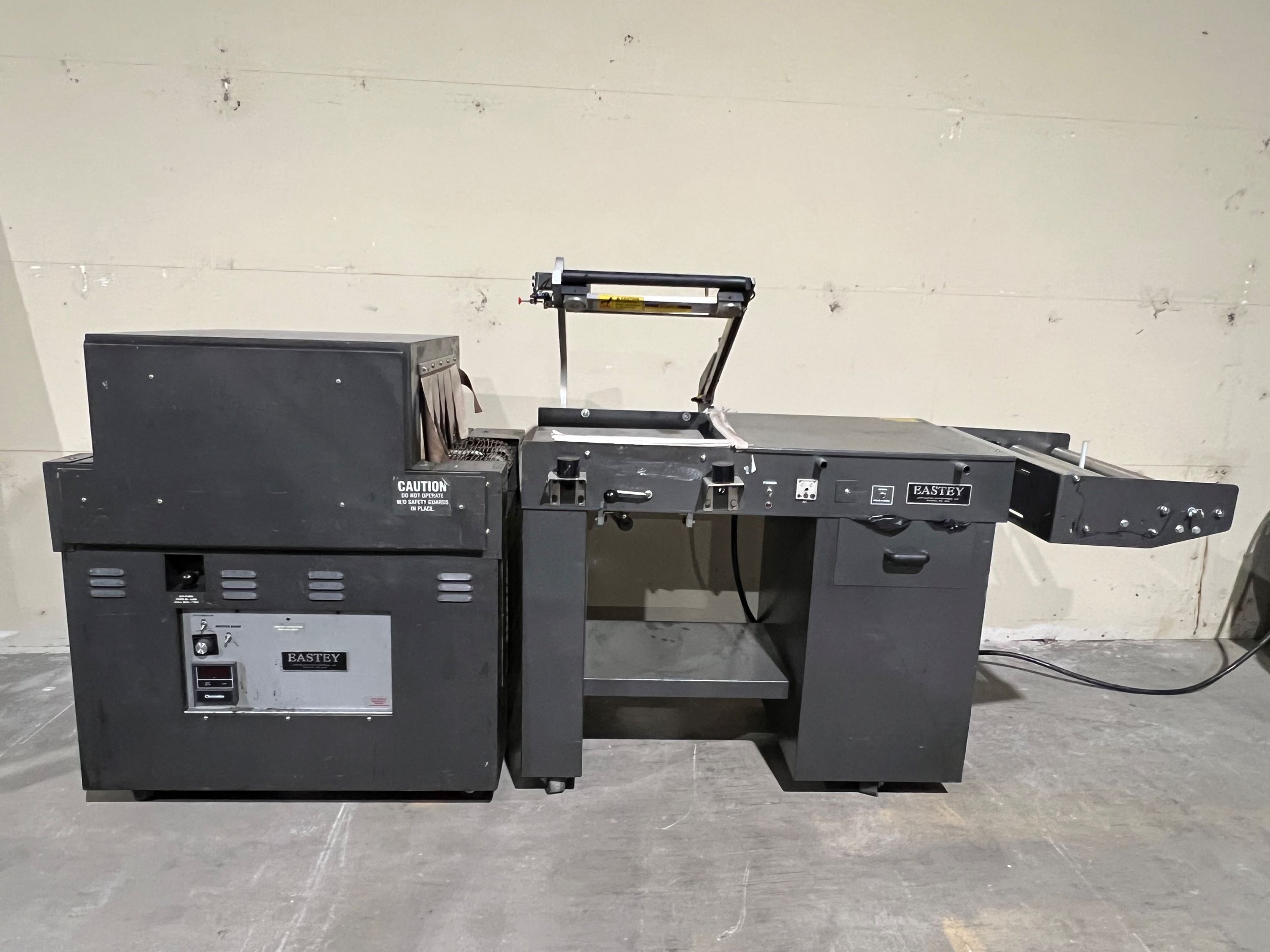

Eastey L-Bar Sealer w/ Heat Tunnel

The Eastey L-Bar w/ Heat Tunnel is a manually operated L-Bar Sealer. Compared to fully automatic machines the manually operated machines are much more accessible, making it easier for machine placement and operation.

Eastey L-Bar Sealer w/ Heat Tunnel

Machine Specifications and Features

• Manually operated L-Bar Sealer w/ a heat tunnel.

• Temperature automatically controlled on the L-Bar Sealer and Heat Tunnel.

• L-Bar Sealer:

  • Model: EM16M

  • Serial: 111616MPP

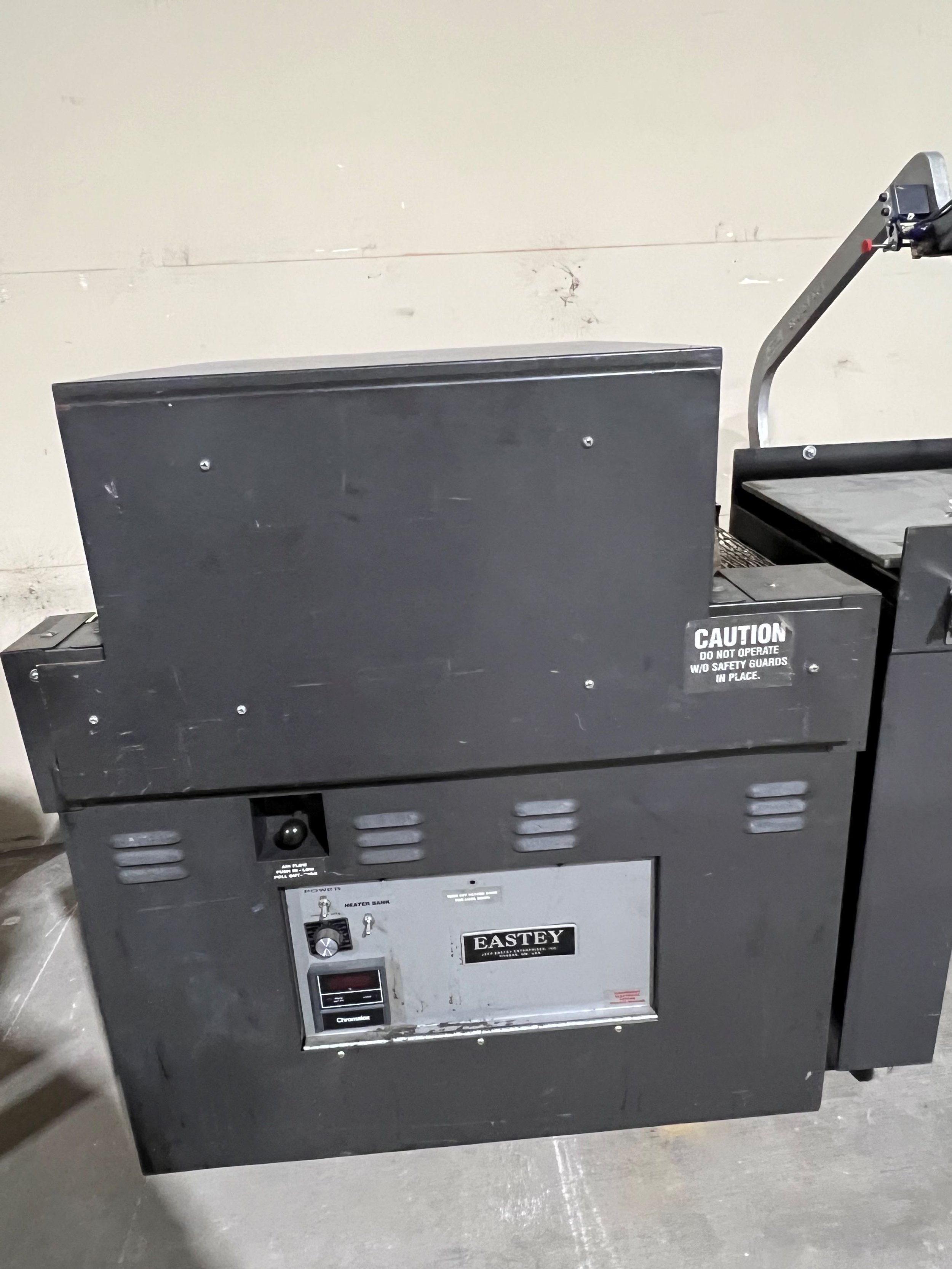

• Heat Tunnel:

  • Model: ET1608

  • Serial: 1951608TLMB

Controllers and Operation

• With no touchscreen the Easty is much more user-friendly and simple.

• Temperature controller to manually adjust the heat for the L-bar seal and separate controller for the heat tunnel.

Machine Dimensions and Requirements

• Power Requirements -

  • L-Bar Sealer w/ Heat Tunnel: 220VAC / 60hz / 40A Single Phase

• Pneumatics Requirements - N/A

• Dimensions -

  • L-Bar Sealer: 61” L x 32” W x 43” (Closed) & 52” (Open) H

  • Heat Tunnel: 39.5” L x 31” W x 45” H

• Net Weight - 950lbs

  • L-Bar Sealer - 450lbs

  • Heat Tunnel - 500lbs

Contact us today to find out more!
