VTE-4

PESCO VTE-4 vertical tube elevator

Welcome to our vertical tube elevator, the PESCO VTE-4.

Capable of delivering 100 parts per minute to your equipment, this machine is configured in a left to right feed direction and is the perfect match to our TFS-80X, or almost any other left-to-right tube filling equipment.

This system has been designed to be easy to use and operate. The built-in adjustability and safety features make this elevator both convenient and capable of fully automatic operation.

While most commonly used for tubes, this machine is capable of feeding cartridges and other similar cylindrical components.

PESCO VTE-4 Video

Size Capabilities:

Diameter: 16 mm - 60 mm

Length: 70 mm - 255 mm

Details:

The PESCO VTE-4 tube elevator is a PLC controlled automatic, stand-alone vertical conveyance feeder system designed to deliver your tube or cartridge components in suitable fashion to the infeed of your filling system at up to 100* parts per minute - including oval tubes! Custom options include solutions to manage static and exceed the rated speed and size capability - talk to one of our experts today and find out how the PESCO VTE-4 can work for you!

*Machine can run at higher speeds with custom options. Contact us to learn more!

  • Weight: 365 lbs
    Dimensions: 42” x 18” x 68”

  • Power: 220V, 1Φ, 60Hz, 2A
    Nominal Power Draw: 400 W

    Air: 90 psi @ 20 scfm*

    *Air required only if Static Control system is used

  • Custom size configurations

    Static Control Systems

    E-stop & Downstream Integration

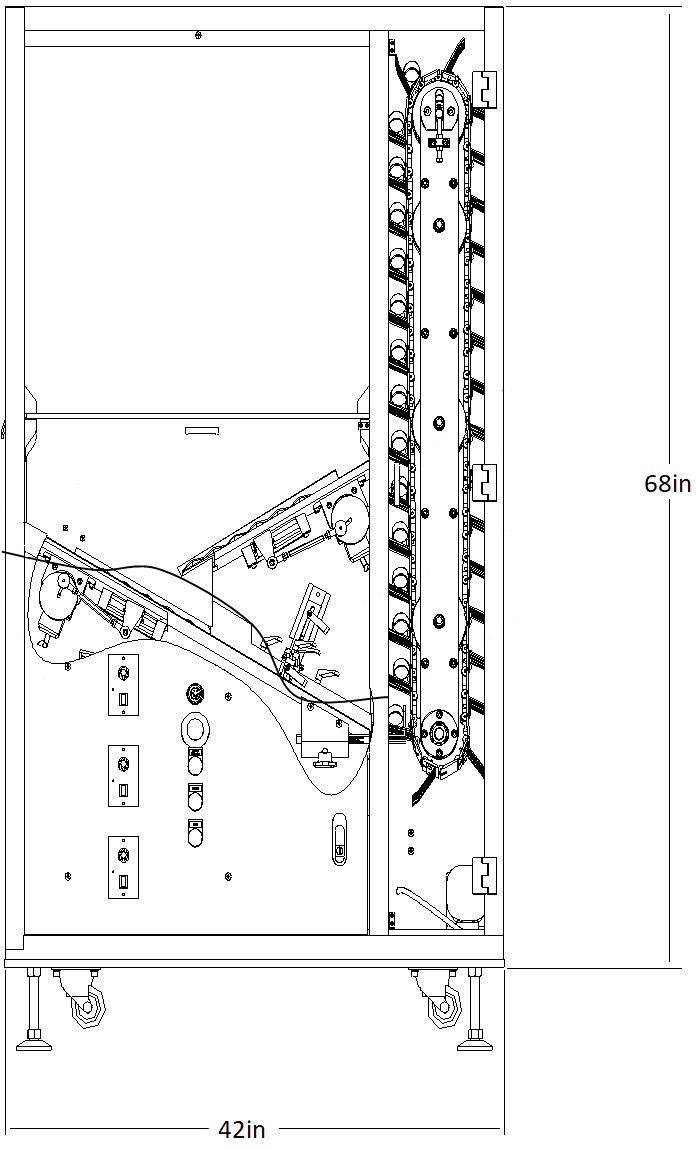

PESCO VTE-4 Drawing Front
PESCO VTE-4 Drawing Side
