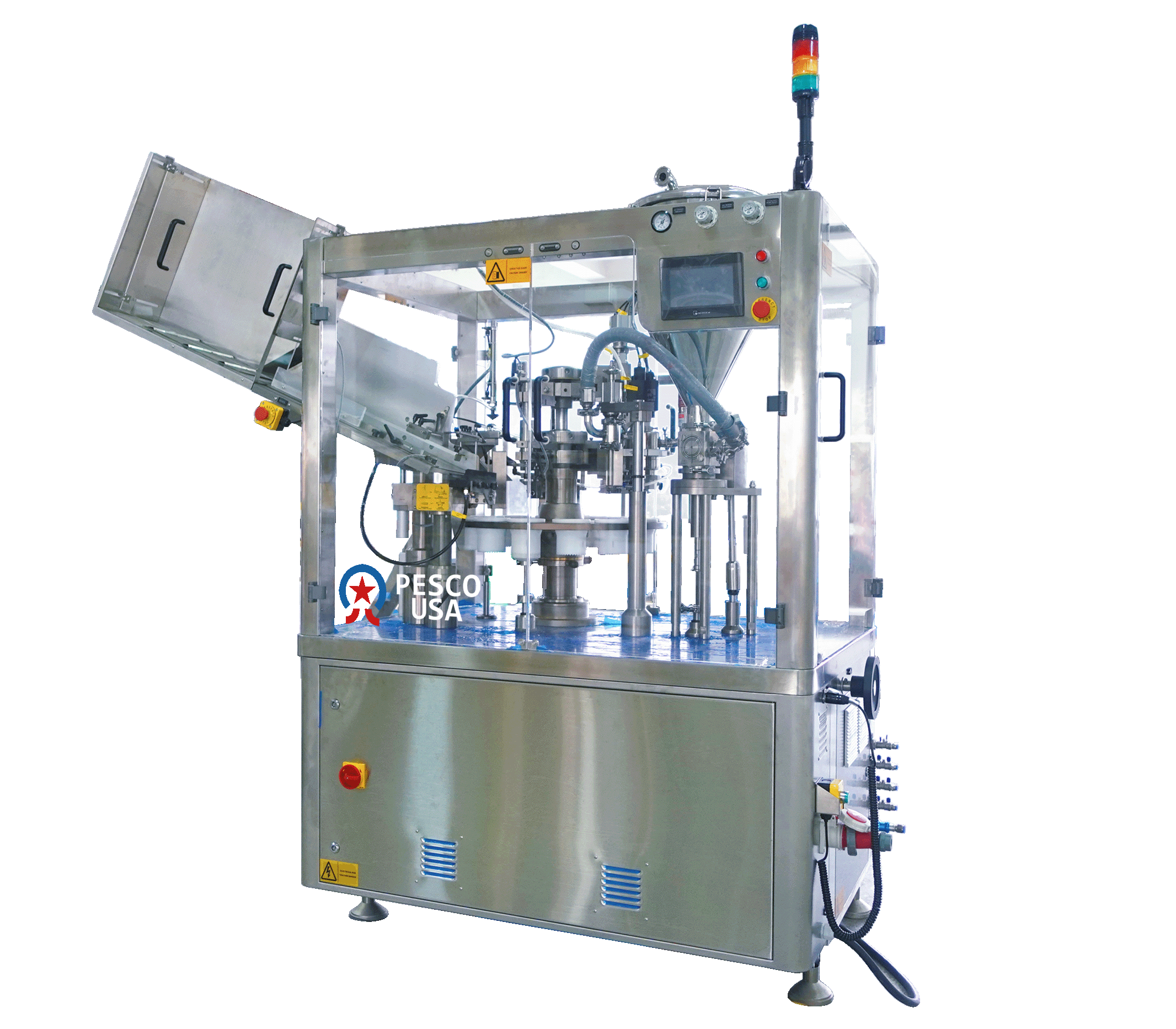

PESCO TFS-80X Automatic Tube Filling System
Introducing the new
TFS-80X
One of the most advanced tube filling and sealing systems available, the TFS-80X is capable of:
-
Speeds of 30-80 parts per minute
-
Autoloading round and oval tubes
-
Sealing plastic, co-ex, aluminum, and renewable resin blend tubes between 10mm and 55mm in diameter and up to 210mm tall
-
Designer seals including round, wave, tall hole punch, and many other seal styles
-
Filling range of 3 ml – 250ml
Standard Features:
-
Hot-Air Fully Automatic Tube Filling and Sealing System
-
Metal Tube Sealing Optional
-
-
Up to 80 Tubes per Minute
-
316SS Contact Parts & 304SS Chassis
-
Bottom-up Filling with Diving Nozzle Featuring Positive Shut Off and Air Blow
-
Advanced Tooling Designs with Rapid Turnaround
-
Recipe Saves for Digital Settings
-
Indexes for Repeatable Common Adjustments
-
Advanced Safety Features – Physical and Digital
-
Built-In Production Reporting Features
-
Fast Changeovers
-
Low Maintenance
-
1 Year Warranty
Optional Features:
-
Multiple configurations available to meet the needs of Cosmetics, Pharmaceutical, and Industrial Manufacturers
-
Jacketed Hopper for Product Temperature Control
-
Product Hopper Mixers
-
Automatic Product Level Control
-
Tube Cleaning Vacuum
-
Nitrogen Purge (pre & post fill options)
-
Dual sided coding (Plastic & Aluminum)
-
Designer Seal Patterns (Arc, Wave, Tall, Sombrero, etc.)
-
Servo-Adjusted Fill Control with Checkweigher
-
Advanced Data Reporting
-
Predictive Maintenance Monitoring
-
Custom Projects (Dual Chamber, Scrubs, etc.)
-
Changeover from Metal to Plastic Tubes
-
Swap Heads in 30 Minutes or LESS!
-
-
Service Subscription Plans
-
Extended Warranties Available
-
Validation Packages Available
Machine Details
-
Weight: ~3,300 lbs

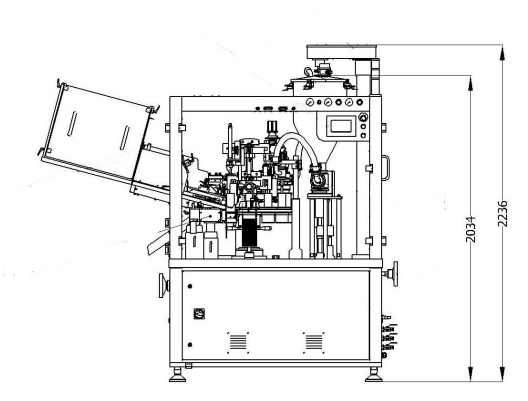

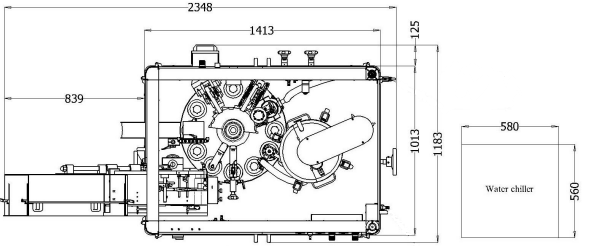

Dimensions: 7’10” x 3’9” x 7’2” -
Power: 220V, 3Φ, 60Hz, 20A
Nominal Power Draw: 7 kWAir Pressure: 90-120 psi
Air Volume: 32 scfmChilled water: 0.5 gpm @ 15-20°C
-
Hopper: 10.5 gal
Max heating temp: 600°C
