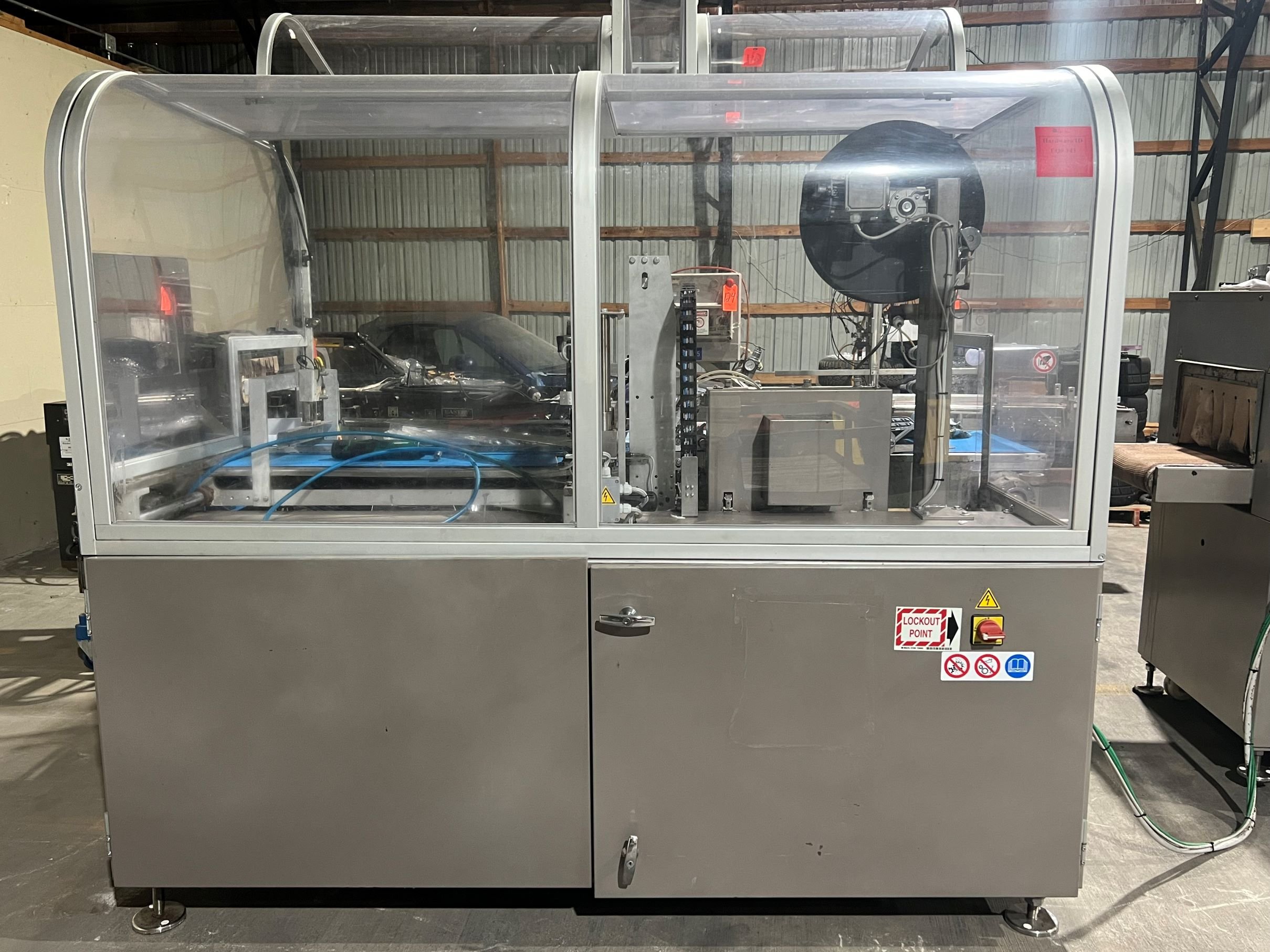

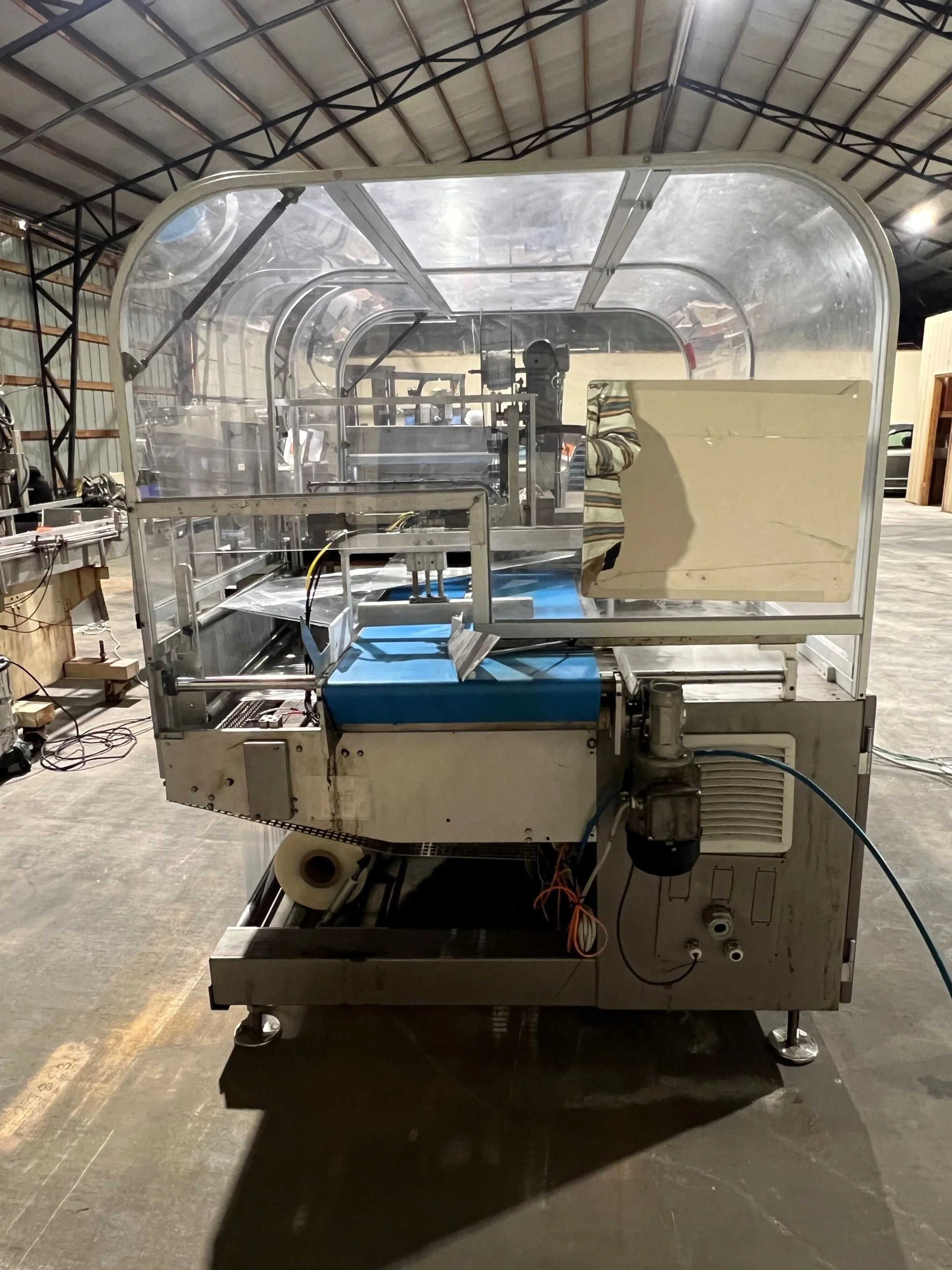

IFP Flowrapper w/ Heat Tunnel

The IFP Flowrapper w/ Heat Tunnel is a fully automatic wrapping and sealing machine. It is capable of cycle times up to 2 seconds per. Depending on product configuration you can easily produce packaged product up to 100 pieces per minute.

Speak with us today regarding your setup!

IFP Flowrapping Machine

Machine Specifications and Features

• Fully automatic flowrapping machine.

• Plastic guards to protect operators and other individuals.

• IFP Flowrapper -

  • Model: Diamond T 650 2N

  • Serial: F4734

• IFP Heat Tunnel -

  • Model: TS 40/20

  • Serial: F4734.1

PLC control systems and LCD touchscreen display

• User-friendly touchscreen with easy-to-read and well traversable menus.

• Save recipes for all digital inputs for quicker changeovers.

• Safety systems to protect the operator and individual around the machine.

Machine Dimensions and Requirements

• Power Requirements -

  • Flowrapper: 240VAC / 60hz / 7A 3 phase

  • Heat Tunnel: 240VAC / 60hz / 11A 3 phase

• Pneumatics Requirements -

  • Flowrapper: 90 psi

  • Heat Tunnel: N/A

• Dimensions -

  • Flowrapper: 98” L x 67” W x 72” H

  • Heat Tunnel: 64” L x 42.5” x 61” H

• Net Weight -

  • Flowrapper: 2,000 lbs.

  • Heat Tunnel: 700 lbs.

Contact us today to find out more!
